Designing aluminum profiles is a meticulous process that requires an understanding of the material's properties, manufacturing methods, and application requirements. This comprehensive guide will walk you through the essential steps and considerations necessary for creating effective aluminum profiles, ensuring that your designs are not only functional but also cost-effective and manufacturable.
Aluminum extrusion is a process that shapes aluminum by forcing it through a die to create a specific cross-sectional profile. This method allows for the production of complex shapes that are lightweight yet strong, making aluminum profiles ideal for various applications in construction, automotive, aerospace, and many other industries.
The aluminum extrusion process can be likened to squeezing toothpaste from a tube. The continuous stream of toothpaste takes the shape of the round tip, just as an aluminum extrusion takes the shape of the die.
Steps in the Extrusion Process:
1. Die Preparation: A die is cast from the desired cross-section shape.
2. Heating: Aluminum billets are heated to approximately 750 to 925°F (400 to 500°C), where they become soft but not molten.
3. Lubrication: A lubricant is applied to prevent sticking.
4. Extrusion: The heated billet is placed into a press where a hydraulic ram applies pressure, forcing it through the die.
5. Cooling: After exiting the die, the extruded profile is cooled using air or water sprays.
6. Cutting and Finishing: The cooled profile is cut to length and may undergo additional finishing processes such as anodizing or painting.
This process enhances the properties of aluminum, resulting in a final product that is stronger and more resilient than before while also creating a thin layer of aluminum oxide on its surface for weather resistance.
- Understand the purpose of the aluminum profile by considering factors such as load-bearing capacity, environmental conditions, and aesthetic requirements.
- Selecting an appropriate alloy influences strength, corrosion resistance, and workability. Common alloys include:
- 6063: Good extrudability and surface finish.
- 6061: Higher strength and weldability.
- 6005: Suitable for structural applications.
- Begin with rough sketches outlining dimensions, shapes, and features. Utilize CAD software to refine these designs into detailed drawings.
- Uniform wall thickness reduces load on the matrix during extrusion and minimizes risk of damage. Aim for thicknesses that balance strength with manufacturability.
- Sharp corners should be avoided as they can lead to structural weaknesses during extrusion. A radius of 0.5mm to 1mm is typically recommended for corners.
- The shape should minimize material usage while maintaining strength. Symmetrical designs facilitate better material flow during extrusion.
- Consider how profiles will be assembled with other components; features like grooves or slots can simplify assembly processes.
- Decide on surface treatments early in the design phase as they can influence dimensions and tolerances.
- Create prototypes using 3D printing or small-scale extrusion tests to evaluate design effectiveness before full-scale production.
- Maintain Symmetry: Symmetrical profiles ensure balanced material flow through the matrix, reducing breakage risks.
- Avoid Deep Narrow Channels: These can complicate extrusion and increase die failure risks.
- Use Ribs for Strength: Adding ribs can help maintain flatness in wide profiles and enhance structural integrity.
- Simplify Designs Where Possible: Complexity can lead to higher costs; aim for simplicity without sacrificing functionality.

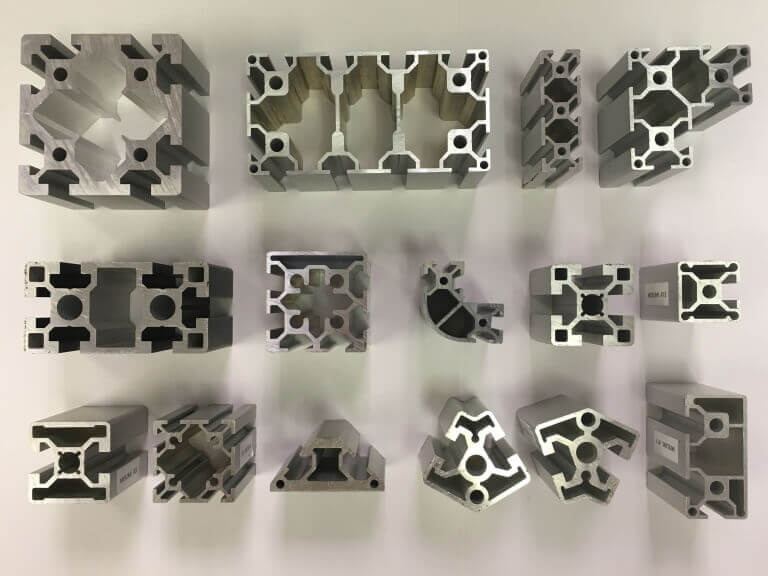

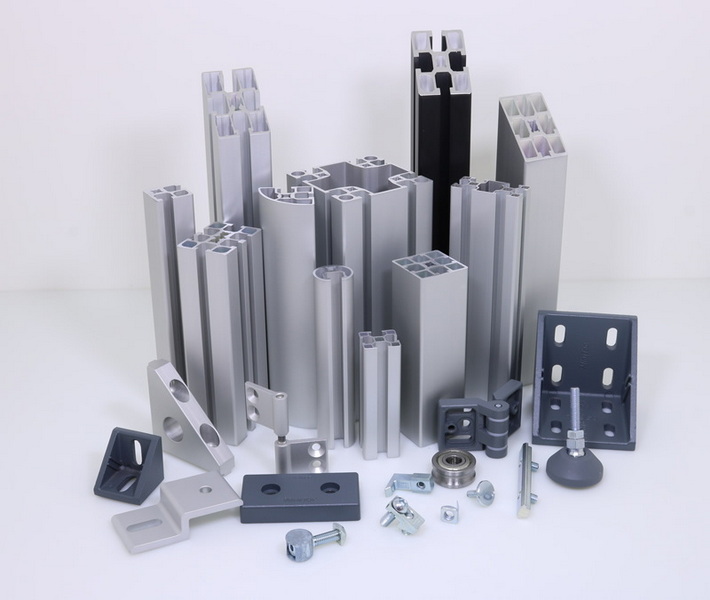

Aluminum profiles can generally be categorized into three types:
- Solid Profiles: These have no empty spaces within their cross-section.
- Hollow Profiles: These contain at least one empty space circumscribed by metal.
- Semi-Hollow Profiles: These have partially hollow sections but maintain structural integrity.
Aluminum profiles are used across various industries due to their versatility:
- Construction: Used in window frames, door frames, curtain walls, roofing systems, etc.
- Automotive: Employed in chassis components, frames, and other structural elements.
- Aerospace: Utilized in aircraft frames and components due to their lightweight nature.
- Industrial Automation: Commonly found in conveyor systems, workstations, and machine guarding systems.
Designing aluminum profiles requires careful consideration of various factors including material properties, manufacturing processes, and application needs. By following best practices such as maintaining uniform wall thicknesses, using rounded corners, optimizing cross-sectional shapes, and simplifying designs where possible, designers can create efficient and effective aluminum profiles that meet their intended purposes.
Aluminum profiles are widely used in construction (windows, doors), automotive (frames), aerospace (aircraft components), industrial automation (conveyor systems), and more.
The choice of alloy depends on required strength, corrosion resistance, weight considerations, and specific application needs.
Common finishing options include anodizing (for corrosion resistance), powder coating (for aesthetics), and mill finish (raw state).
Yes, most manufacturers offer customization options based on specific design requirements including dimensions, shapes, and finishes.
Lead times vary but typically range from 4 to 6 weeks depending on complexity and order volume.
