Aluminum extrusion is a manufacturing process that shapes aluminum alloy into desired profiles by forcing it through a die. This method is widely used in various industries due to its efficiency and versatility. In this article, we will explore the aluminum extrusion process in detail, including the steps involved, the equipment used, and the applications of extruded aluminum profiles. We will also provide visual aids such as images and videos to enhance understanding.
Aluminum extrusion involves several key steps:
- Die Preparation: The extrusion die is designed to create specific shapes. It is preheated to ensure smooth metal flow.
- Billet Heating: The aluminum billet is heated to a malleable state, typically between 400°C and 500°C (750°F to 930°F).
- Extrusion Process: The heated billet is placed into an extrusion press, where it is forced through the die under high pressure.
- Cooling and Quenching: After exiting the die, the extruded profile is cooled rapidly, usually in a water bath or with air.
- Stretching and Cutting: The profile is straightened and cut to the desired length.
- Heat Treatment: Finally, the extruded profiles may undergo heat treatment to enhance their mechanical properties.
- The die is crafted based on the desired profile shape. It must be preheated to temperatures between 450°C and 500°C (842°F to 932°F) to facilitate smooth extrusion.
- The aluminum billet, which is a solid cylindrical piece of aluminum, is heated in a furnace. This heating process makes the metal malleable enough for extrusion while maintaining its solid form.
- The heated billet is loaded into an extrusion press. A hydraulic ram applies pressure, pushing the aluminum through the die. This step requires significant force, often exceeding thousands of tons.
- As the newly formed profile exits the die, it enters a cooling area where it is quenched to stabilize its shape and properties. This can be done using water or air cooling methods.
- After cooling, the extruded profile may experience some twisting or distortion. It is then stretched to ensure straightness and uniformity.
- The aluminum profiles are cut into specified lengths using saws or shearing machines.
- To improve strength and hardness, the profiles may undergo heat treatment at controlled temperatures for a specific duration.

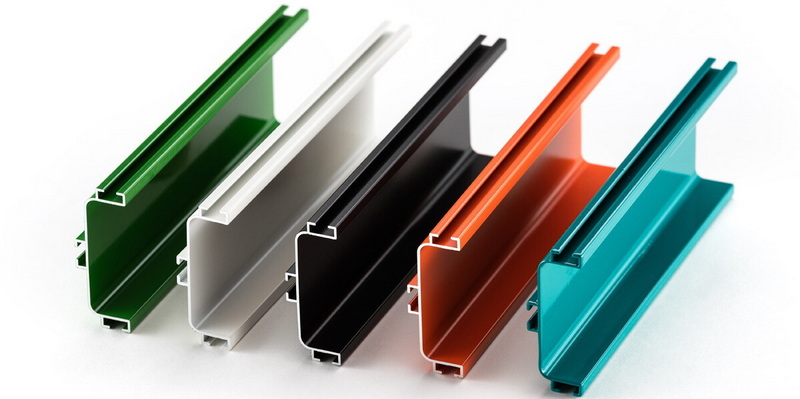

- Finally, additional finishing processes such as anodizing or painting may be applied based on customer requirements.
- Extrusion Press: This machine applies high pressure to push the heated billet through the die.
- Die: Custom-designed tools that shape the aluminum during extrusion.
- Heating Furnaces: Used to preheat both the aluminum billets and dies.
- Cooling Systems: Water baths or air systems used for quenching extruded profiles.
- Stretchers: Equipment used to straighten extruded profiles post-cooling.
Aluminum profiles are utilized in various sectors due to their lightweight and durable nature:
- Construction: Used in window frames, doors, and structural components.
- Automotive: Lightweight parts that improve fuel efficiency while maintaining strength.
- Aerospace: Components that require high strength-to-weight ratios.
- Consumer Goods: Items like furniture frames and electronic housings.
Aluminum extrusion offers numerous benefits that make it a preferred choice in many applications:
- Versatility: The process can create complex shapes with intricate designs tailored for specific applications.
- Strength-to-Weight Ratio: Aluminum provides excellent strength while being lightweight, making it ideal for applications where weight reduction is crucial.
- Corrosion Resistance: Aluminum naturally forms a protective oxide layer that helps resist corrosion, extending the life of products made from it.
- Cost Efficiency: Once set up, aluminum extrusion can be highly cost-effective for large production runs due to its speed and efficiency.
- Recyclability: Aluminum is 100% recyclable without loss of its properties, making it an environmentally friendly choice.
Despite its advantages, there are challenges associated with aluminum extrusion:
- Initial Setup Costs: Designing and manufacturing custom dies can be expensive upfront costs for small production runs.
- Quality Control: Maintaining consistent quality throughout production requires stringent quality control measures during each step of the process.
- Material Limitations: Not all aluminum alloys are suitable for extrusion; some may not provide the desired mechanical properties or workability.
Recent advancements in technology have significantly improved aluminum extrusion processes:
- Computer-Aided Design (CAD): Modern software allows for precise design of dies and profiles, reducing errors and improving efficiency.
- Automation: Automated systems streamline operations from billet handling to cutting, enhancing productivity and reducing labor costs.
- Advanced Cooling Techniques: New cooling methods help achieve uniform cooling rates across profiles, minimizing warping and improving mechanical properties.
Aluminum extrusion is a vital manufacturing process that allows for the creation of complex shapes with high precision. By understanding each step of this process—from die preparation to finishing—we can appreciate how versatile and essential extruded aluminum profiles are across various industries. The benefits of using aluminum profiles include their lightweight nature, corrosion resistance, and recyclability. However, manufacturers must also address challenges such as initial setup costs and quality control to optimize production effectively.
As industries continue to innovate and demand more efficient materials, aluminum extrusion will remain a crucial process in meeting these needs while contributing positively to sustainability efforts through recycling initiatives.
Other metals such as copper and magnesium can also be extruded, but aluminum is most commonly used due to its favorable properties.
Temperature significantly impacts malleability; if the billet is too cold, it won't flow properly through the die, while excessive heat can lead to defects in the final product.
Common applications include construction materials like window frames, automotive parts, aerospace components, and consumer products.
Yes, custom shapes can be designed using specific dies tailored for particular applications.
T5 temper indicates that the material has been artificially aged after being cooled from an elevated temperature, while T6 indicates it has been solution heat-treated followed by aging for increased strength.
