Joining aluminum profiles is an essential skill for DIY enthusiasts, engineers, and manufacturers alike. Aluminum profiles are widely used due to their lightweight, durability, and versatility in various applications, including construction, furniture design, and industrial machinery. This comprehensive guide will explore the different methods for joining aluminum profiles, providing step-by-step instructions, tips, and visual aids to help you achieve strong and reliable connections.

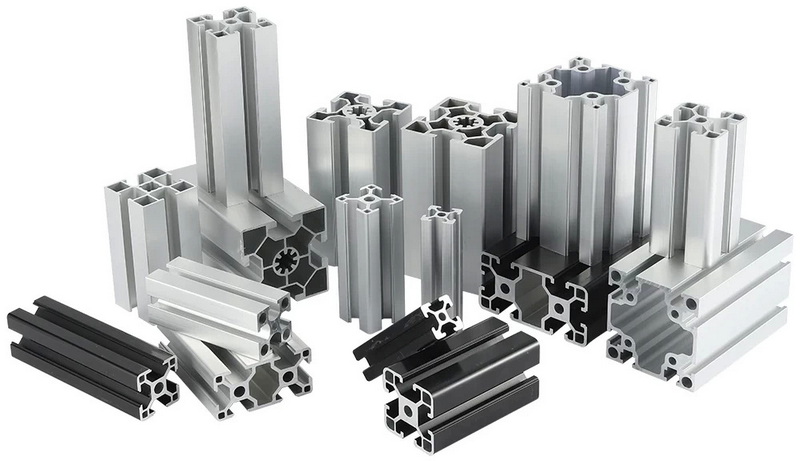

Aluminum profiles come in various shapes and sizes, including T-slot, square, and rectangular profiles. Their unique characteristics make them suitable for a wide range of applications. When joining these profiles, it's crucial to choose the right method based on the project's specific requirements, such as load-bearing capacity, aesthetic preferences, and ease of assembly.
- T-Slot Profiles: These are versatile and allow for easy assembly of structures without the need for complicated tools.
- Square Profiles: Commonly used in framing applications due to their strength and stability.
- Rectangular Profiles: Often utilized in structural applications where higher load-bearing capacity is required.
There are several methods to join aluminum profiles effectively. Here are some of the most common techniques:
- Mechanical Fastening
- Welding
- Adhesive Bonding
- Using Specialized Connectors
- Snap-Fit Joints
Each method has its advantages and disadvantages depending on the application.
Mechanical fastening is one of the simplest and most effective ways to join aluminum profiles. This method involves using screws, bolts, nuts, or rivets to create a secure connection.
Steps:
1. Cutting Profiles: Measure and cut the aluminum profiles to the desired lengths using a miter saw or a hacksaw.
2. Drilling Holes: Mark the locations for drilling holes on both profiles. Use a drill press for precision and apply cutting fluid to reduce heat.
3. Tapping Threads: If using screws or bolts that require threading, tap threads into the drilled holes using a tap handle.
4. Assembling: Align the profiles at the desired angle and insert T-nuts or bolts into the slots. Tighten using a hex key or socket wrench.
5. Checking Alignment: Use a reference square to ensure proper alignment before tightening all connections securely.
Welding is a robust method for joining aluminum profiles that provides high strength and durability. Common welding techniques include TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding.
Steps:
1. Preparation: Clean the surfaces of the aluminum profiles to remove any oxidation or contaminants.
2. Setting Up Equipment: Set up your welding machine according to the manufacturer's instructions.
3. Welding Technique: Hold the welding torch at a 45-degree angle and move it steadily along the joint while feeding in filler material as needed.
4. Cooling: Allow the welded joint to cool naturally before handling.
- Provides strong joints that can withstand high loads.
- Ideal for permanent connections.
- Can be used for various thicknesses of aluminum.
- Requires specialized equipment and skills.
- Can cause warping if not done properly.
- Not easily disassembled once joined.
Adhesive bonding is an excellent option for creating seamless connections without visible fasteners. This method is particularly useful when aesthetics are important.
Steps:
1. Surface Preparation: Clean both surfaces thoroughly with isopropyl alcohol to ensure good adhesion.
2. Applying Adhesive: Apply a high-performance adhesive specifically designed for aluminum bonding evenly across one surface.
3. Joining Profiles: Press the two profiles together firmly and hold them in place until the adhesive sets (follow manufacturer instructions for curing time).
4. Finishing Touches: Once cured, you can sand down any excess adhesive for a smooth finish.
- Provides a clean appearance without visible fasteners.
- Distributes stress evenly across bonded surfaces.
- Can be used on complex shapes where mechanical fastening may be difficult.
- Curing time can be lengthy compared to mechanical methods.
- May not be suitable for high-load applications.
- Requires careful surface preparation for optimal results.

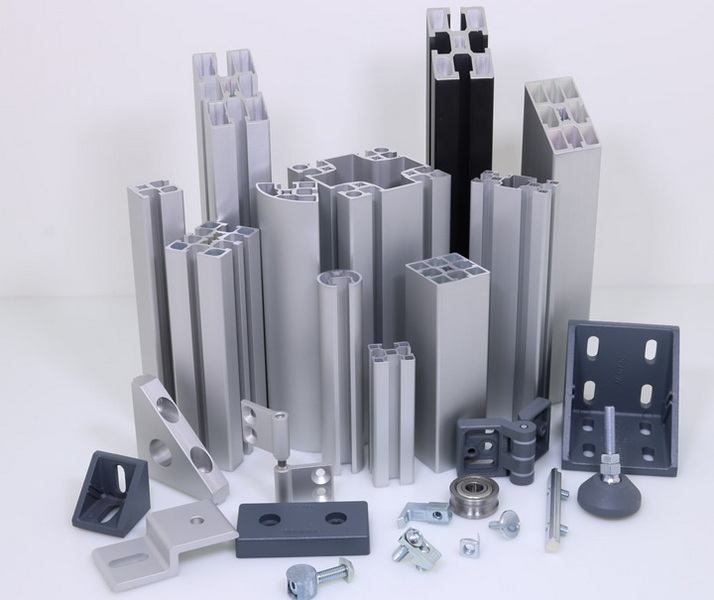

Specialized connectors are designed specifically for joining aluminum profiles quickly and efficiently without additional machining.
Common Types:
- Corner Brackets
- T-slot Connectors
- L-shaped Connectors
Steps:
1. Selecting Connectors: Choose connectors based on your design requirements (e.g., corner brackets for 90-degree connections).
2. Positioning Connectors: Align connectors with the profile slots as per your design layout.
3. Securing Connections: Insert screws or bolts through the connectors into the profile slots and tighten securely.
- Simplifies assembly processes significantly.
- Eliminates additional machining while providing strong connections tailored for specific angles or configurations.
- Allows for easy disassembly if needed.
- May require specific connectors that could limit flexibility in design.
- Can sometimes be more expensive than traditional fastening methods.
Snap-fit joints utilize the elasticity of aluminum profiles to create quick connections without additional components.
Steps:
1. Designing Profiles: Ensure that your aluminum profiles have interlocking features designed for snap-fit connections.
2. Assembly: Align one profile's snap-fit arm with another profile's groove and press them together until they click into place.
3. Testing Connection: Gently pull on both ends to ensure they are securely connected.
- Quick assembly without tools.
- No additional components are required.
- Easily disassembled if necessary without damage to parts.
- Limited load-bearing capacity compared to other methods.
- Requires precise manufacturing tolerances for effective engagement.
When deciding which method to use for joining aluminum profiles, consider:
- The required strength of joints
- Aesthetic preferences
- Ease of assembly
- Future disassembly needs
- Available tools and skills
For example:
| Application Type | Recommended Joining Method |
|---|---|
| Structural Frames | Welding or Mechanical Fastening |
| Furniture Assembly | Adhesive Bonding or Mechanical Fastening |
| Temporary Structures | Specialized Connectors or Snap-Fit Joints |
1. Always clean surfaces before joining to ensure optimal adhesion or fitment.
2. Use clamps during assembly when necessary to maintain alignment while securing joints.
3. Consider pre-drilling holes slightly larger than your fasteners to allow for thermal expansion in outdoor applications where temperature fluctuations occur frequently.
4. Test fit components before final assembly; this can save time by identifying issues early in the process.
5. Follow manufacturer guidelines closely when using adhesives or specialized connectors to achieve best results.
Joining aluminum profiles can be accomplished through various methods depending on your project needs—whether you require mechanical strength, aesthetic appeal, or ease of assembly. By understanding each method's advantages and following best practices during assembly, you can achieve durable and reliable connections in your projects while ensuring safety and functionality.
The best method depends on your specific application requirements—mechanical fastening is versatile, while welding offers high strength; adhesive bonding provides aesthetics without visible fasteners.
Mechanical fastening methods allow for easy disassembly compared to welded joints which are permanent unless cut apart.
Adhesive bonding can provide comparable strength if done correctly but may not be suitable for all load-bearing applications; it's best used where aesthetics are prioritized.
Using reference squares during assembly helps maintain alignment; also consider dry assembling components before final tightening to check fitment.
Yes! Specialized connectors simplify assembly processes significantly by eliminating additional machining while providing strong connections tailored for specific angles or configurations.
