Creating aluminum profiles through the extrusion process is a fascinating blend of engineering and manufacturing. This article will provide a comprehensive guide on how to make aluminum profiles, detailing each step of the process, the necessary equipment, and the applications of these profiles.
Aluminum extrusion is a manufacturing process where aluminum alloy is transformed into objects with a specific cross-sectional profile. The process involves heating aluminum billets and forcing them through a die to create long shapes that can be cut to desired lengths. This method is widely used due to its efficiency and the versatility of the resulting profiles.
The aluminum extrusion process can be broken down into several key steps:
- The process begins with the preparation of aluminum billets, which are cylindrical logs of aluminum alloy. These billets are cut from larger logs and need to be heated before extrusion.
- The aluminum billet is heated in an oven to approximately 400-500°C (752-932°F). This heating makes the aluminum malleable enough for extrusion but not molten, ensuring it retains its shape during processing.
- The extrusion die, which shapes the aluminum as it is forced through, must also be preheated. This die can be made from tool steel and is designed to withstand high temperatures and pressures.
- The heated billet is loaded into an extrusion press. A hydraulic ram applies pressure to push the billet through the die opening, forming it into the desired profile shape. This pressure can reach up to 15,000 tons depending on the size of the profile being produced.
- Once extruded, the aluminum profile is rapidly cooled using water or air quenching methods. This step is crucial for setting the shape and ensuring structural integrity.
- After cooling, some natural twisting may occur in the profiles. To correct this, they are mechanically gripped at both ends and pulled until straightened.
- The extruded profiles are then cut to specified lengths using precision saws.
- Depending on the desired properties, heat treatment may be applied to enhance strength and hardness.
- Finally, surface treatments such as anodizing or painting can be applied to improve corrosion resistance and aesthetics.

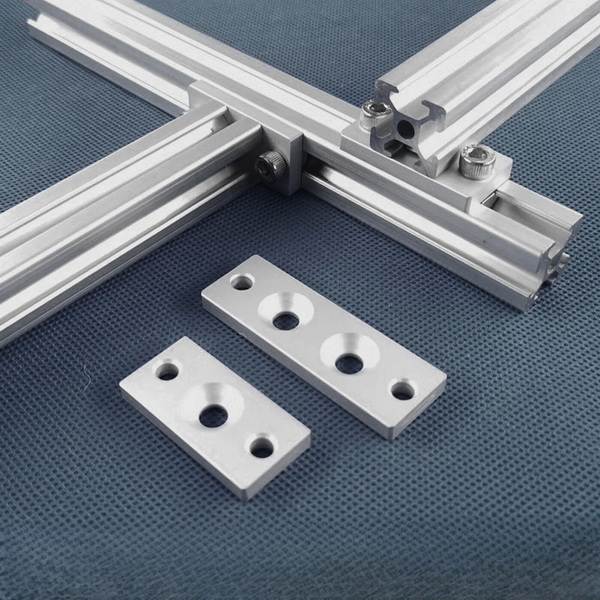

Aluminum profiles come in various shapes and sizes, each designed for specific applications:
- Standard Shapes: Commonly used shapes include angles, channels, tubes, and bars.
- Custom Shapes: Tailored designs that meet specific client requirements or project needs.
- Hollow Profiles: Used in applications requiring lightweight structures with good strength characteristics.
- Solid Profiles: Typically used in applications where strength is paramount.
Aluminum profiles are used in various industries due to their lightweight nature, strength-to-weight ratio, and resistance to corrosion. Common applications include:
- Construction: Used in window frames, doors, roofing systems, and structural components.
- Automotive: Lightweight parts for vehicles that enhance fuel efficiency and performance.
- Electronics: Heatsinks and enclosures for electronic devices that require efficient thermal management.
- Furniture: Modular furniture systems that can be easily assembled or modified for different uses.
- Aerospace: Components that require high strength-to-weight ratios while maintaining durability under extreme conditions.
The use of aluminum profiles offers numerous benefits:
- Lightweight: Aluminum is significantly lighter than steel or other metals, making it easier to handle during installation.
- Corrosion Resistance: Aluminum naturally forms a protective oxide layer that prevents corrosion, making it ideal for outdoor applications.
- Versatility: The extrusion process allows for a wide range of shapes and sizes tailored to specific needs.
- Recyclability: Aluminum can be recycled without losing its properties, contributing to sustainability efforts.
To better illustrate this process, here are some visual aids:
- Diagrams showing each step of the extrusion process.
- Photos of different types of aluminum profiles in use across various industries.
- Videos demonstrating the aluminum extrusion process in action. For example, you can find detailed explanations in videos such as "How are Aluminum Extrusions Made?" which visually captures each step from heating to cutting.
While aluminum extrusion has many advantages, there are also challenges associated with this manufacturing process:
- Die Design Complexity: Creating a die for custom shapes can be time-consuming and costly.
- Material Wastage: Some material may be wasted during cutting or if defects occur during extrusion.
- Quality Control: Ensuring consistent quality across large production runs requires stringent quality control measures.
As industries evolve, so do manufacturing processes. Some future trends in aluminum profile manufacturing include:
- Automation: Increased use of robotics in handling materials and operating machinery will improve efficiency.
- Advanced Alloys: Development of new aluminum alloys with enhanced properties will expand application possibilities.
- Sustainability Practices: Emphasis on recycling and using sustainable practices will continue to grow within the industry.
The process of making aluminum profiles through extrusion is a complex yet efficient method that allows for high customization in manufacturing. With its applications spanning numerous industries—from construction to aerospace—understanding this process opens up opportunities for innovation in product design and functionality.
Aluminum alloys such as 6061 and 6063 are commonly used due to their excellent mechanical properties and corrosion resistance.
Heat treatment enhances strength and hardness by altering the microstructure of the aluminum alloy.
Common treatments include anodizing, painting, and powder coating, which improve durability and appearance.
Yes, custom dies can be designed to create specific shapes based on client requirements.
Industries such as construction, automotive, aerospace, and electronics extensively use aluminum profiles due to their lightweight and strong characteristics.
