What Is Anodized Aluminum Profiles?

Views: 222 Author: Dream Publish Time: 2025-01-29 Origin: Site

Inquire

Content Menu

● Understanding Anodizing

● Benefits of Anodized Aluminum Profiles

● Applications of Anodized Aluminum Profiles

● Anodized Aluminum in Architecture

>> Case Study: Anodized Aluminum in Skyscrapers

● Anodized Aluminum in the Automotive Industry

>> Example: Anodized Aluminum Wheels

● The Anodizing Process

● Maintenance of Anodized Aluminum Profiles

● Conclusion

● FAQ

>> 1. What is anodized aluminum?

>> 2. How thick is the anodized layer?

>> 3. Can anodized aluminum be colored?

>> 4. Is anodized aluminum environmentally friendly?

>> 5. What are common uses for anodized aluminum profiles?

● Citations:

Anodized aluminum profiles are aluminum sections that have undergone an electrochemical process known as anodizing. This process enhances the natural oxide layer on the surface of aluminum, resulting in a thicker, more durable protective layer. Anodized aluminum profiles are widely used across various industries due to their improved resistance to corrosion, wear, and aesthetic versatility.

aluminum profiles_2

Understanding Anodizing

Anodizing is an electrolytic passivation process that increases the thickness of the natural oxide layer on the surface of metal parts. The aluminum profile is submerged in an acid electrolyte bath, where it acts as the anode (the positive electrode). A cathode, typically made from inert material, is placed in the solution. When an electric current passes through the solution, oxygen is released at the surface of the aluminum, forming aluminum oxide (Al₂O₃) on the surface. This layer can be controlled in thickness, typically ranging from 5 to 25 micrometers for standard anodizing and up to 150 micrometers for hard anodizing.

Benefits of Anodized Aluminum Profiles

The anodizing process imparts several key benefits to aluminum profiles:

- Corrosion Resistance: The anodized layer protects against environmental factors such as moisture and chemicals, significantly enhancing durability.

- Wear Resistance: Anodized aluminum surfaces are harder than untreated aluminum, making them resistant to scratches and abrasion.

- Aesthetic Appeal: The anodizing process allows for various finishes and colors, enabling customization to meet specific design needs.

- Electrical Insulation: The anodized layer provides electrical insulation, making it suitable for electronic applications.

- Low Maintenance: Anodized surfaces require minimal upkeep due to their resistance to dirt and grime.

- Sustainability: Anodized aluminum is a sustainable choice as it is 100% recyclable. The anodizing process itself is also environmentally friendly, using non-toxic chemicals and producing minimal waste.

- Thermal Resistance: Anodized aluminum can withstand high temperatures, making it suitable for applications in environments where heat resistance is crucial.

- Lightweight: Aluminum is a lightweight material, and anodizing does not significantly add to its weight, making it ideal for applications where weight is a concern, such as in aerospace and automotive industries.

Applications of Anodized Aluminum Profiles

Anodized aluminum profiles are utilized in a wide range of applications across various industries:

- Architectural Applications: Commonly used for window frames, curtain walls, roofing systems, and cladding due to their aesthetic appeal and durability.

- Automotive Industry: Used in components such as wheels, trim, and grilles where both appearance and performance are critical.

- Electronics: Employed in manufacturing electronic devices where corrosion resistance and aesthetic finish are essential.

- Consumer Goods: Found in household items like cookware and appliances due to their durability and ease of maintenance.

Anodized Aluminum in Architecture

Anodized aluminum profiles are increasingly popular in modern architecture. They are used in facades, roofing, and interior design elements. The ability to customize colors and finishes allows architects to create unique designs that stand out while maintaining durability and low maintenance.

Case Study: Anodized Aluminum in Skyscrapers

Many skyscrapers utilize anodized aluminum for their exterior cladding. For example, the Burj Khalifa in Dubai features anodized aluminum panels that not only enhance its aesthetic appeal but also provide protection against the harsh desert climate. The reflective quality of anodized finishes can also help buildings stay cooler by reflecting sunlight.

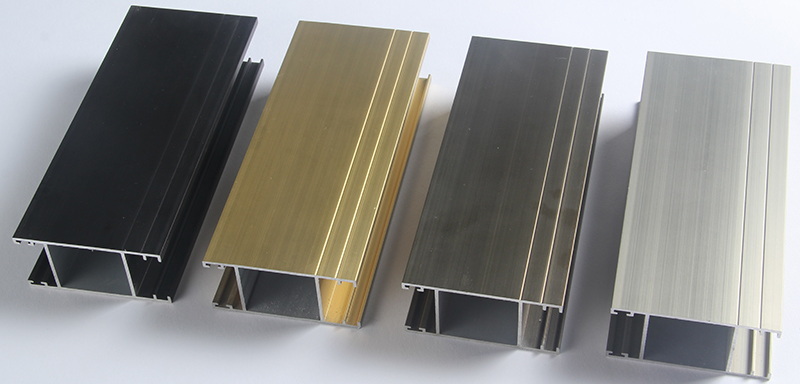

anodized aluminum profiles_1

Anodized Aluminum in the Automotive Industry

In the automotive sector, anodized aluminum is used for various components, including engine parts, wheels, and trim. The lightweight nature of aluminum helps improve fuel efficiency, while the anodized finish provides protection against corrosion and wear.

Example: Anodized Aluminum Wheels

Many high-performance vehicles come equipped with anodized aluminum wheels. These wheels not only look great but also offer enhanced performance due to their lightweight and durable nature. Additionally, they resist corrosion from road salts and other environmental factors that can degrade uncoated metals.

The Anodizing Process

The anodizing process involves several steps:

1. Cleaning: The aluminum profile is cleaned to remove any oils or contaminants that could affect the anodizing process.

2. Etching: A mild etching solution is applied to create a uniform surface by removing a thin layer of aluminum.

3. Anodizing: The cleaned profile is submerged in an electrolytic bath containing sulfuric or chromic acid while an electric current is passed through it. This forms the anodic layer on the surface.

4. Coloring (Optional): If desired, colors can be added during this stage by introducing dyes into the porous anodic layer.

5. Sealing: Finally, the anodized surface is sealed to enhance its corrosion resistance and durability by closing off the pores created during anodizing.

Maintenance of Anodized Aluminum Profiles

While anodized aluminum is low maintenance, it is essential to clean it regularly to maintain its appearance. A simple wash with mild soap and water is usually sufficient. Avoid using abrasive cleaners that can scratch the surface.

Regular inspections can also help identify any potential issues early on; however, due to its durability, anodized aluminum typically requires less frequent maintenance than other materials.

Conclusion

In conclusion, anodized aluminum profiles are a versatile and sustainable choice for various applications. Their numerous benefits—including corrosion resistance, aesthetic appeal, low maintenance requirements, thermal resistance, and lightweight nature—make them an ideal material for industries ranging from architecture to automotive. As technology continues to advance, the potential for anodized aluminum will only grow, leading to even more innovative applications.

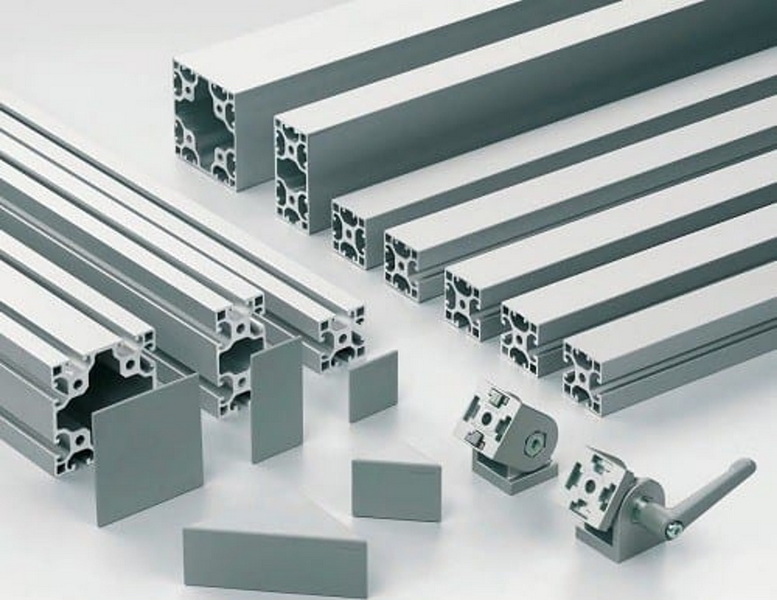

what is anodized aluminum profiles_3

FAQ

1. What is anodized aluminum?

Anodized aluminum refers to aluminum that has been treated through an electrochemical process to increase its natural oxide layer, resulting in improved durability and corrosion resistance.

2. How thick is the anodized layer?

The thickness of the anodized layer typically ranges from 5 to 25 micrometers for standard applications but can reach up to 150 micrometers for hard anodizing.

3. Can anodized aluminum be colored?

Yes, anodized aluminum can be dyed in various colors during the anodizing process due to its porous structure.

4. Is anodized aluminum environmentally friendly?

Yes, anodizing is considered environmentally friendly as it uses non-toxic processes compared to traditional coatings.

5. What are common uses for anodized aluminum profiles?

Common uses include architectural elements like window frames, automotive components like wheels and trim pieces, electronics casings for devices requiring corrosion resistance, and consumer goods like cookware.
