What Is Extrusion Aluminum Profile?

Content Menu

● Understanding the Aluminum Extrusion Process

● Advantages of Aluminum Extrusion Profiles

● Applications of Aluminum Extrusion Profiles

● Visual Representation of the Process

● Challenges in Aluminum Extrusion

● Future Trends in Aluminum Extrusion

● Conclusion

● FAQ

>> 1. What is aluminum extrusion?

>> 2. What are the benefits of using extruded aluminum profiles?

>> 3. What industries commonly use aluminum extrusions?

>> 4. How does surface treatment enhance extruded aluminum profiles?

>> 5. Can extruded aluminum be recycled?

● Citations:

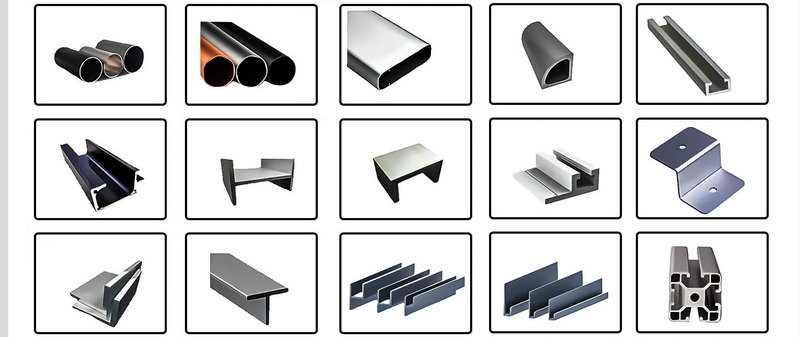

Aluminum extrusion is a manufacturing process that shapes aluminum alloy into specific cross-sectional profiles by forcing it through a die. This method is widely used across various industries due to its versatility, strength, and lightweight properties. In this article, we will explore the aluminum extrusion process in detail, its applications, advantages, and frequently asked questions.

Understanding the Aluminum Extrusion Process

The aluminum extrusion process involves several key steps that transform raw aluminum billets into finished profiles:

1. Billet Preparation: The process begins with the preparation of aluminum billets, which are cylindrical logs of aluminum alloy. These billets are typically heated to a specific temperature to enhance their malleability for extrusion. The heating temperature usually ranges from 400°F to 900°F (204°C to 482°C), depending on the alloy type.

2. Container Heating: The extrusion press container is preheated to reduce the force required for extrusion and ensure a smoother process. This preheating helps maintain the temperature of the billet during the extrusion process.

3. Die Preparation: A die, which shapes the aluminum, is meticulously designed and crafted to create the desired profile. The die design is critical as it determines the final shape and dimensions of the extruded product. Advanced computer-aided design (CAD) software is often used to optimize die design for efficiency and precision.

4. Extrusion: The heated aluminum billet is loaded into the container of the extrusion press. A powerful ram applies pressure, forcing the aluminum through the die, where it takes on the desired shape. This process can be performed using two main methods: direct extrusion, where the ram pushes the billet directly through the die, and indirect extrusion, where the die moves towards the billet.

5. Cooling: After exiting the die, the extruded aluminum profile is rapidly cooled using air or water quenching methods to set its shape and ensure structural integrity. Cooling rates can significantly affect mechanical properties; therefore, controlled cooling is essential.

6. Stretching and Straightening: Some profiles may undergo a stretching process to align the aluminum molecules and reduce internal stresses, ensuring straightness and uniformity. This step is crucial for maintaining dimensional accuracy in long profiles.

7. Cutting to Length: The continuous length of extruded aluminum is cut into individual profiles of specified lengths using precision cutting tools.

8. Surface Treatment: Depending on application requirements, extruded profiles may undergo surface treatments such as anodizing or powder coating to enhance appearance and corrosion resistance. Anodizing increases thickness of the natural oxide layer on aluminum parts, providing better protection against wear and corrosion.

9. Quality Control: Rigorous inspection measures are conducted to ensure dimensional accuracy and overall compliance with specifications. Quality control processes may include visual inspections, dimensional measurements, and mechanical testing.

Advantages of Aluminum Extrusion Profiles

Aluminum extrusion offers numerous benefits that make it an attractive choice for various applications:

- Lightweight: Aluminum is significantly lighter than other metals like steel or copper, making it easier to handle and transport without compromising structural integrity.

- Strength: Despite its lightweight nature, aluminum has excellent strength-to-weight ratios, making it suitable for structural applications where weight savings are critical.

- Corrosion Resistance: Aluminum naturally forms a protective oxide layer that enhances its resistance to corrosion in various environments, including marine and industrial settings.

- Design Flexibility: The extrusion process allows for intricate designs and complex shapes that are difficult to achieve with other manufacturing methods. This flexibility enables engineers and designers to innovate without being limited by material constraints.

- Cost-Effectiveness: Aluminum extrusion minimizes waste and reduces machining needs due to its ability to produce near-net shapes, leading to lower production costs over time.

- Recyclability: Aluminum is 100% recyclable without loss of quality, making it an environmentally friendly option that supports sustainability initiatives in manufacturing.

Applications of Aluminum Extrusion Profiles

Aluminum extrusions are utilized in a wide range of industries due to their versatility:

- Construction: Used in window frames, curtain walls, roofing structures, scaffolding systems, and architectural features where aesthetic appeal meets structural performance.

- Transportation: Lightweight components for vehicles (cars, trucks) and aircraft (wings, fuselage frames) that improve fuel efficiency while maintaining safety standards.

- Electronics: Employed in heat sinks for electronics cooling solutions, electronic enclosures that protect sensitive components from environmental factors, and other components requiring thermal management.

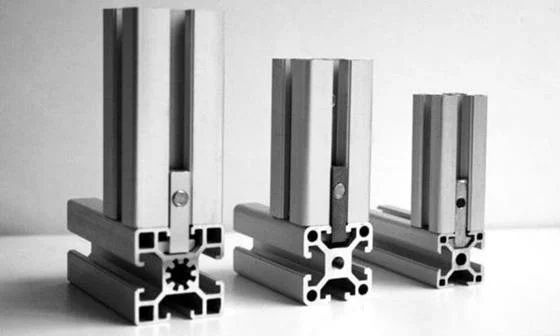

- Industrial Equipment: Used in machinery frames (robotics), conveyor systems (material handling), workstations (modular designs), and other industrial applications requiring strength combined with lightweight characteristics.

- Consumer Products: Found in everyday items such as furniture frames (tables), sports equipment (bicycles), and even kitchen appliances where durability meets design aesthetics.

Visual Representation of the Process

For a more in-depth understanding of the aluminum extrusion process, you can watch these informative videos:

Challenges in Aluminum Extrusion

While aluminum extrusion has many advantages, there are also challenges associated with this manufacturing process:

- Die Wear: The dies used in extrusion can wear out over time due to high pressures and temperatures involved in the process. Regular maintenance or replacement of dies may be necessary for consistent quality production.

- Material Limitations: Not all aluminum alloys are suitable for extrusion; some may not perform well under specific conditions or may require specialized processing techniques.

- Dimensional Tolerances: Achieving tight tolerances can be challenging during production due to variations in temperature or material properties; however, advancements in technology continue to improve precision levels.

Future Trends in Aluminum Extrusion

The future of aluminum extrusion looks promising with several emerging trends:

- Sustainability Initiatives: As industries focus more on sustainability practices, demand for recycled aluminum extrusions is expected to rise significantly due to their reduced environmental impact compared to virgin materials.

- Advanced Alloys Development: Research into new alloys specifically designed for enhanced performance characteristics will enable manufacturers to push boundaries further regarding strength-to-weight ratios while maintaining cost-effectiveness.

- Automation Technologies: Increased automation within plants will streamline production processes while minimizing human error; this trend aligns with Industry 4.0 principles aimed at optimizing efficiency through smart manufacturing solutions.

Conclusion

Aluminum extrusion is a highly efficient manufacturing process that produces lightweight yet strong profiles suitable for a variety of applications across multiple industries. Its advantages include design flexibility, cost-effectiveness, recyclability, and excellent mechanical properties. As industries continue to seek sustainable solutions without compromising on quality or performance, aluminum extrusion will remain a vital component in modern manufacturing practices.

FAQ

1. What is aluminum extrusion?

Aluminum extrusion is a manufacturing process that shapes aluminum alloy by forcing it through a die with a specific cross-sectional profile.

2. What are the benefits of using extruded aluminum profiles?

Benefits include lightweight properties, high strength-to-weight ratios, corrosion resistance, design flexibility, cost-effectiveness, and recyclability.

3. What industries commonly use aluminum extrusions?

Common industries include construction (for windows and doors), transportation (for vehicle components), electronics (for heat sinks), and industrial equipment manufacturing.

4. How does surface treatment enhance extruded aluminum profiles?

Surface treatments like anodizing or powder coating improve corrosion resistance and aesthetic appeal while also providing additional durability against wear over time.

5. Can extruded aluminum be recycled?

Yes! Aluminum is 100% recyclable without losing quality; thus making it an environmentally friendly material choice that supports sustainability initiatives globally.
