Aluminum I beams are critical components in construction and engineering, widely recognized for their strength-to-weight ratio and corrosion resistance. This article will explore the various sizes and specifications of standard aluminum I beam profiles, their applications, benefits, and considerations when selecting the appropriate size for specific projects.

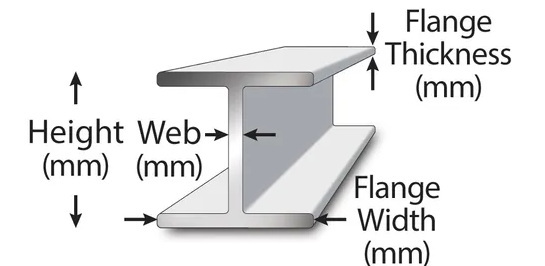

Aluminum I beams, also known as structural aluminum beams, are characterized by their distinctive 'I' shape, which consists of two horizontal flanges connected by a vertical web. This design allows them to effectively bear loads while minimizing material usage. They are commonly used in various structural applications, including building frameworks, bridges, and support systems.
The use of aluminum in structural applications has gained popularity due to its lightweight nature and high strength. Compared to traditional materials like steel, aluminum offers a lower density while maintaining similar load-bearing capabilities. This combination makes aluminum I beams an attractive choice for engineers and architects looking to optimize their designs.
Aluminum I beams come in a wide range of sizes and dimensions. The most common standards are based on the American Aluminum Association (AAA) specifications, which categorize beams by their depth and weight per unit length. Below is a table summarizing some standard sizes:
| Depth (inches) | Width (inches) | Weight per Foot (lbs) |
|---|---|---|
| 3 | 2.5 | 1.637 |
| 4 | 3 | 2.311 |
| 6 | 4 | 4.030 |
| 8 | 5 | 7.023 |
| 10 | 6 | 8.646 |
| 12 | 7 | 9.993 |
These dimensions can vary based on specific requirements or custom orders. For example, a typical aluminum I beam might measure 6 inches in height with a flange width of 4 inches and a web thickness of approximately 0.23 inches.
Most aluminum I beams are made from alloys such as:
- 6061: Known for its good mechanical properties and weldability, making it ideal for structural applications.
- 6063: Often used for architectural applications due to its excellent finish and aesthetic appeal.
- 7005: Typically used in applications requiring high strength-to-weight ratios.
Each alloy has unique properties that make it suitable for different applications, so it's essential to choose the right one based on the project's needs.
Aluminum I beams are versatile and can be used in numerous applications:
- Building Construction: Used as floor joists, roof supports, and columns. Their lightweight nature allows for easier handling during construction while still providing necessary support.
- Bridges: Ideal for lightweight bridge structures due to their high strength-to-weight ratio. Many modern pedestrian bridges utilize aluminum I beams to minimize the overall weight while ensuring safety and stability.
- Automotive Industry: Used in vehicle frames and components to reduce weight while maintaining structural integrity. The automotive sector increasingly relies on aluminum to enhance fuel efficiency without sacrificing performance.
- Marine Applications: Resistant to corrosion, making them suitable for boat hulls and other marine structures. Their ability to withstand harsh environmental conditions makes them a preferred choice in shipbuilding.
- Industrial Applications: Commonly used in manufacturing facilities for support structures, conveyor systems, and machinery frames due to their durability and resistance to wear.
The advantages of aluminum I beams include:
- Lightweight: Aluminum is significantly lighter than steel, reducing transportation costs and ease of handling on-site.
- Corrosion Resistance: Aluminum naturally forms a protective oxide layer that prevents rusting, making it ideal for outdoor and marine environments.
- High Strength-to-Weight Ratio: Provides excellent load-bearing capabilities without excessive weight.
- Versatility: Can be easily cut, welded, or formed into different shapes for various applications.
- Sustainability: Aluminum is recyclable without losing its properties, making it an environmentally friendly option compared to other materials.
When choosing an aluminum I beam for a project, consider the following factors:
- Load Requirements: Determine the maximum load the beam will need to support. This includes both static loads (permanent loads such as the weight of the structure) and dynamic loads (temporary loads such as wind or snow).
- Span Length: The distance between supports affects the size and thickness needed. Longer spans may require deeper or wider beams to prevent excessive deflection or bending.
- Environmental Conditions: If exposed to harsh conditions (e.g., saltwater), select alloys with higher corrosion resistance. Additionally, consider temperature variations that may affect material performance.
- Local Building Codes: Ensure compliance with local regulations regarding structural materials. Different regions may have specific requirements based on climate or seismic activity.
When designing structures using aluminum I beams, engineers must account for several factors:
1. Deflection Limits: It is crucial to calculate deflection under load accurately. Excessive deflection can lead to structural failure or discomfort in buildings where people occupy spaces supported by these beams.
2. Connection Methods: The method of connecting aluminum I beams to other structural elements is critical. Welding is common but requires specific techniques due to aluminum's thermal properties; bolting may also be employed using specialized fasteners designed for aluminum.
3. Fire Resistance: While aluminum has good fire resistance compared to other materials, it can weaken at elevated temperatures. Designers should incorporate fire protection measures where necessary.
4. Aesthetic Considerations: In architectural applications, the appearance of aluminum I beams can significantly impact the overall design aesthetic. Choosing finishes that complement surrounding materials enhances visual appeal.
For further understanding, here are some informative videos:
When budgeting for projects involving aluminum I beams, consider:
- Material Costs: Prices can fluctuate based on market demand for aluminum.
- Fabrication Costs: Custom sizes or modifications may increase expenses.
- Transportation Costs: Due to their lightweight nature, shipping costs may be lower than heavier materials.
- Installation Costs: Labor costs can vary based on complexity; however, lighter materials often reduce labor time during installation.
The demand for aluminum in construction continues to grow due to its sustainability features and adaptability:
- Increased focus on green building practices has led architects and engineers toward using more recyclable materials like aluminum.
- Advances in manufacturing technologies allow for more precise fabrication methods that enhance performance characteristics.
- The push towards lightweight construction methods has made aluminum an attractive option across various industries.
Aluminum I beams are essential components in modern construction due to their lightweight nature, high strength-to-weight ratio, and resistance to corrosion. With various standard sizes available based on American specifications, these beams can be tailored to meet specific project requirements across multiple industries. As technology advances and sustainability becomes increasingly important in construction practices, the role of aluminum will likely continue expanding.
An aluminum I beam is a structural element characterized by its 'I' shape, consisting of two horizontal flanges connected by a vertical web.
Aluminum I beams come in various sizes; common dimensions include depths ranging from 3 inches to 12 inches with corresponding widths and weights per foot.
Most aluminum I beams are made from alloys like 6061 and 6063 due to their favorable mechanical properties and corrosion resistance.
They are used in building construction, bridges, automotive applications, and marine structures due to their lightweight and strong characteristics.
Consider factors like load requirements, span length between supports, environmental conditions, and compliance with local building codes when selecting an appropriate size.
