T-slot aluminum profiles have become a cornerstone in modern engineering, manufacturing, and DIY projects due to their unique combination of strength, flexibility, and ease of assembly. These extruded aluminum profiles feature a distinctive T-shaped slot running along their length, allowing for modular construction without welding or complex machining. But just how strong are aluminum profile t-slot systems? This article explores the strength characteristics, factors affecting load capacity, and practical applications of t-slot aluminum profiles to help you understand their capabilities and limitations.

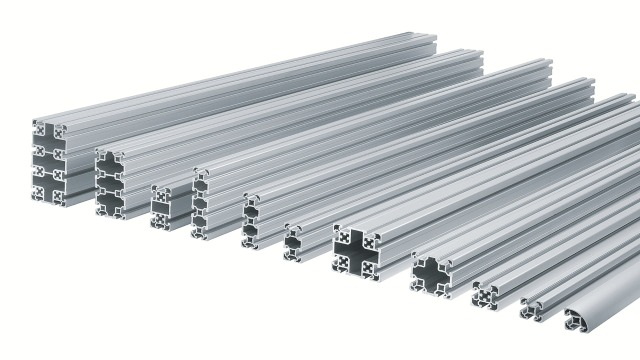

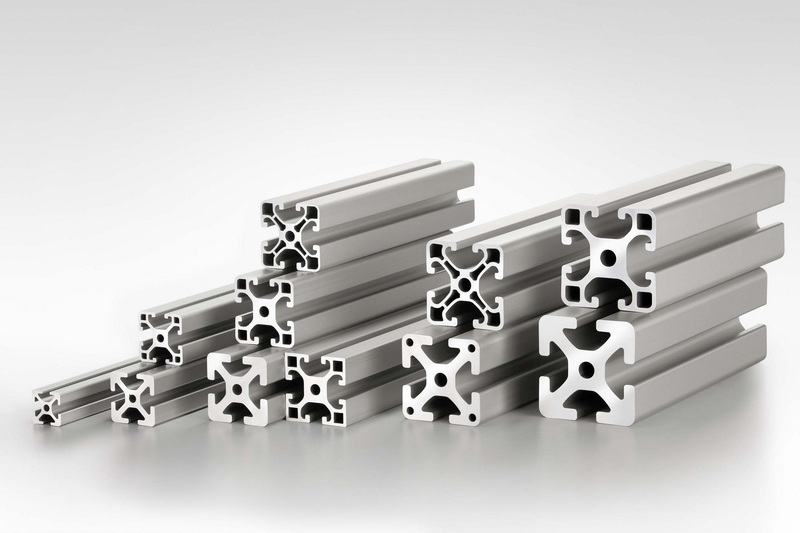

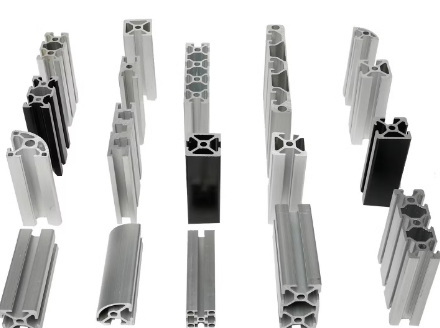

Aluminum profile t-slot refers to extruded aluminum bars with T-shaped grooves designed to accept fasteners and connectors. This design allows for quick and adjustable assembly of frames, enclosures, workstations, and machinery supports. The profiles come in various sizes and shapes, commonly denoted by dimensions like 20x20 mm, 40x40 mm, or larger industrial sizes such as 45x90 mm.
The T-slot system enables the creation of strong, lightweight structures that can be easily modified or expanded. The modularity and reusability of these profiles make them popular in industries ranging from automation and manufacturing to furniture and aerospace.
The strength of aluminum profile t-slot systems largely depends on the aluminum alloy used. Common alloys include:
- 6061-T6: Known for its high tensile strength (~290 MPa) and excellent corrosion resistance, making it suitable for heavy-duty structural framing and automation rigs.
- 6005-T5: Offers a good balance of strength (~260 MPa tensile) and extrusion ease, often used in medium-duty framing.
- 6063-T5: Easier to extrude, lighter, and more decorative, with lower tensile strength (~190 MPa), ideal for lightweight frames and display units.
- 6082-T6: Slightly stronger than 6061, used in high-load industrial builds.
The choice of alloy directly impacts the load-bearing capacity and durability of the t-slot profile.
The cross-sectional size and wall thickness of the profile significantly influence strength. Larger profiles like the 45x90 mm series can support loads up to 1500 kg (approximately 3300 lbs) when properly supported, making them suitable for heavy-duty applications such as industrial workstations and machine frames.
Smaller profiles (e.g., 20x20 mm or 40x40 mm) are strong enough for medium to light loads but may require additional bracing for high-load or high-vibration environments.
The way the load is applied affects the strength of t-slot aluminum profiles:
- Distributed Load: Evenly spread weight over a length of the profile reduces bending and deflection.
- Point Load: Concentrated weight at a single point causes higher stress and deflection, requiring stronger profiles or additional supports.
Profiles tend to bend more easily when supported only at the ends compared to being fixed firmly between vertical posts.
Longer unsupported spans drastically reduce load capacity. Doubling the length of a beam can reduce its load capacity by up to 75%, making strategic placement of gussets, brackets, or intermediate supports essential for maintaining structural integrity.
The strength of the entire structure also depends on how well the aluminum profile t-slot components are connected. Using high-quality fasteners, corner brackets, and gussets ensures that the joints can transfer loads effectively without slipping or loosening. Poorly assembled joints or under-tightened fasteners can drastically reduce the overall strength and stability of the framework.
T-slot aluminum profiles are widely used to build machine frames and structural bases due to their excellent strength-to-weight ratio and dimensional accuracy. Unlike welded steel frames, t-slot profiles avoid heat distortion during assembly, maintaining precise alignment critical for mounting linear rails and measurement devices.
These frames can withstand substantial dynamic and static loads, making them ideal for supporting heavy machinery, robotic arms, and automation equipment. The ability to quickly modify or expand the frame without disassembling the entire structure is a significant advantage in fast-paced industrial environments.
Custom workstations benefit from aluminum profile t-slot systems because they can be tailored for ergonomic comfort and workflow optimization. The profiles support accessories like monitor arms, tool holders, and shelves, which can be repositioned easily without compromising structural strength.
The modular nature allows for height adjustments and reconfiguration to meet different user needs, improving productivity and reducing fatigue in manufacturing or laboratory settings.
The strength and modularity of t-slot aluminum make it ideal for automation systems, including conveyor belts and pick-and-place machines. Profiles can be assembled quickly and adjusted as needed, supporting dynamic loads while maintaining stability.
The profiles' resistance to corrosion and ease of maintenance further enhance their suitability for industrial automation, where downtime must be minimized.
In automotive applications, t-slot aluminum profiles are used for parts that require vibration damping and shock resistance, such as pedals, steering columns, and suspension components. Aerospace applications leverage the lightweight yet strong nature of aluminum profiles for constructing lightweight parts that resist deformation and fatigue.
In these sectors, the ability to maintain strength while reducing weight is critical for performance, fuel efficiency, and safety.
For hobbyists and small-scale fabricators, aluminum profile t-slot systems offer an accessible way to build strong, customizable structures without specialized tools. Whether constructing 3D printer frames, camera rigs, or custom furniture, the profiles provide a balance of strength and flexibility.
| Factor | Impact on Strength |
|---|---|
| Alloy Type | Determines tensile and yield strength |
| Profile Size | Larger profiles support heavier loads |
| Wall Thickness | Thicker walls increase rigidity and load capacity |
| Load Distribution | Even loads reduce bending; point loads increase stress |
| Span Length | Longer spans reduce strength; supports improve it |
| Assembly Method | Firmly fixed connections are stronger than simple supports |
| Environmental Conditions | Corrosion resistance affects long-term durability |
- High Strength-to-Weight Ratio: Strong enough for heavy-duty applications while remaining lightweight.
- Modularity: Easy to assemble, disassemble, and reconfigure without welding.
- Corrosion Resistance: Aluminum alloys resist rust, maintaining strength over time.
- Customizability: Profiles can be cut to length and combined with various accessories.
- Aesthetic Finish: Anodized and powder-coated finishes provide professional looks.
- Cost-Effectiveness: Reduced labor and tooling costs compared to traditional welded steel frames.
- Reusability: Components can be reused or repurposed for different projects, reducing waste.
While aluminum profile t-slot systems are corrosion resistant, maintaining their strength over time requires periodic inspection and maintenance. Fasteners should be checked for tightness, and profiles should be cleaned to remove debris that could cause wear or interfere with connections.
In harsh environments, protective coatings or anodizing can extend the lifespan of the profiles. Proper design to avoid stress concentrations and fatigue will also ensure long-term durability.
Aluminum profile t-slot systems offer a remarkable balance of strength, flexibility, and ease of use. Their strength depends on factors such as alloy type, profile size, load type, and support conditions. Properly selected and designed t-slot aluminum profiles can support heavy industrial loads, provide stable frameworks for machinery, and create ergonomic workstations. Their versatility extends across industries including manufacturing, automotive, aerospace, and even DIY furniture projects. Understanding the strength characteristics and design considerations of aluminum profile t-slot systems ensures you can build safe, durable, and efficient structures tailored to your specific needs.
The load capacity depends on the profile size and support conditions. For example, a 45x90 mm aluminum profile t-slot can support up to 1500 kg (3300 lbs) when properly supported and braced. Smaller profiles hold less weight and may require additional supports for heavy loads.
6061-T6 is commonly regarded as the strongest general-purpose alloy for t-slot aluminum profiles, offering high tensile strength and good corrosion resistance. 6082-T6 is also used for high-load industrial applications.
Yes, longer unsupported spans significantly reduce the load capacity due to increased bending and deflection. Adding intermediate supports or gussets helps maintain strength over longer spans.
Yes, aluminum's natural corrosion resistance and available anodized or powder-coated finishes make t-slot profiles suitable for outdoor and harsh environments.
Yes, one of the key advantages of aluminum profile t-slot systems is their modularity. Components can be easily repositioned, added, or removed without welding or permanent alterations.
