When choosing stainless steel for applications exposed to corrosive environments, two popular grades often come into consideration: 316 and 316L stainless steels. Both belong to the austenitic stainless steel family and are known for their excellent corrosion resistance and mechanical properties. However, subtle differences in their composition and performance can dramatically impact their suitability depending on the application specifics. This article explores the distinctions between 316 and 316L stainless steel, focusing on corrosion resistance, weldability, mechanical properties, and practical uses, to help you decide which is better for your needs.
Both 316 and 316L stainless steels are variations of the 300-series austenitic stainless steels and contain similar key elements: chromium (around 16-18%), nickel (10-14%), and molybdenum (2-3%). The molybdenum addition is critical as it provides enhanced resistance to corrosion, especially against chlorides, making these grades ideal for marine and chemical environments.
The primary difference between the two lies in their carbon content:
- 316 stainless steel typically contains up to 0.08% carbon.
- 316L stainless steel is a low-carbon variant, with carbon content limited to a maximum of 0.03%.
This seemingly small difference profoundly affects their corrosion performance and weldability.
Intergranular corrosion is a key issue when comparing 316 and 316L grades. It occurs when chromium carbides precipitate along stainless steel grain boundaries during exposure to temperatures typically between 450°C and 850°C. These chromium carbides form during welding or heat treatment if the carbon content is high enough. When these carbides form, they deplete chromium locally near the grain boundaries, which diminishes corrosion resistance and causes sensitization—making the material vulnerable to corrosion attacks in these localized areas.
Because of the lower carbon content in 316L stainless steel, there is a significant reduction in carbide precipitation, effectively mitigating the risk of intergranular corrosion. This characteristic makes 316L the ideal choice in applications involving welding or prolonged high-temperature exposure where sensitization could be problematic.
In contrast, 316 stainless steel, with its higher carbon percentage, is more sensitive to carbide formation during welding operations. Therefore, to avoid corrosion issues, post-weld annealing or solution treatment is often required to dissolve chromium carbides and restore the corrosion resistance, adding complexity and cost to fabrication.
Beyond intergranular corrosion, both 316 and 316L offer excellent resistance to pitting and crevice corrosion, especially in chloride-containing environments such as seawater or saline industrial atmospheres. The presence of molybdenum in both grades enhances resistance against localized corrosion that would typically degrade other stainless steels lacking this element.
While both grades perform similarly in resisting pitting corrosion, the improved weld zone corrosion resistance makes 316L slightly more reliable for marine or chemical applications that involve welding.
In standard atmospheric conditions and exposure to mild corrosive environments, both 316 and 316L perform equally well. Their chromium content ensures the formation of a stable, passive oxide layer on the surface, which protects the steels from general corrosion. Therefore, for non-welded components or fabricated parts that are not exposed to elevated temperatures during manufacture, either grade is suitable from a corrosion resistance perspective.

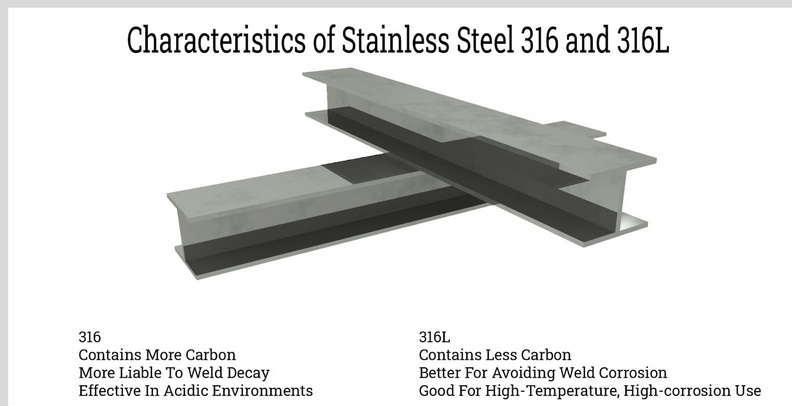

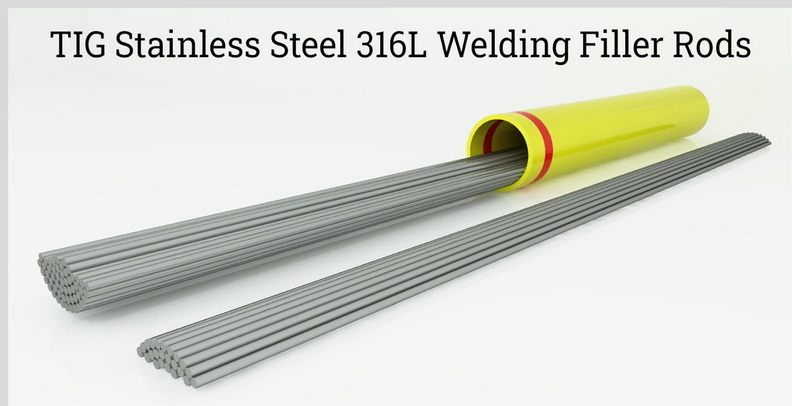

316 and 316L stainless steels are both highly weldable. However, the presence of less carbon in 316L significantly enhances its weldability and reduces post-weld degradation risks.
During welding, heat causes carbon to combine with chromium forming chromium carbides, as mentioned earlier. This precipitation compromises the corrosion resistance of 316 stainless steel, especially around the heat-affected zones (HAZ). Using 316L largely prevents this problem because the carbon content is so low that carbide formation during welding is minimal.
As a result, weld joints in 316L stainless steel show better corrosion resistance without the need for expensive and time-consuming post-weld heat treatments, such as annealing or solution treating, which are often required for 316 to restore corrosion resistance.
This makes 316L preferable for industries where welding is extensive and crucial, such as chemical processing, pharmaceuticals, and food processing equipment.
Both 316 and 316L are austenitic stainless steels, which means they have excellent ductility and toughness. They can be readily cold-worked and formed into various shapes with ease. However, the slightly higher carbon content in 316 can increase hardness and tensile strength, making it marginally less ductile than 316L.
From a machining perspective, both grades respond similarly, though the slightly higher strength of 316 might require a bit more power for machining processes.
While 316L may have a higher upfront raw material cost, the elimination or reduction of post-weld heat treatments reduces overall fabrication costs. Additionally, it decreases the risk of production delays and material rejection due to weld defects caused by sensitization.
The mechanical properties of 316 and 316L stainless steels are close but not identical. The higher carbon content in 316 provides it with higher tensile strength and hardness compared to 316L.
- 316 stainless steel typically shows higher yield and tensile strength values, making it more suitable for applications where mechanical load-bearing capability is critical.
- 316L stainless steel offers slightly lower strength but improved ductility and toughness, which can be beneficial in applications involving complex forming or where stress corrosion cracking must be minimized.
For many applications, the difference in strength between the two grades is negligible, but it can influence material choice in highly stressed structures or components.
Both grades maintain excellent resistance to oxidation and mechanical degradation at elevated temperatures. They are often used in heat exchangers, furnace parts, and other applications exposed to high thermal conditions.
- They can withstand intermittent exposure to temperatures approaching 870°C.
- Continuous exposure up to around 925°C is also achievable.
Since 316L has lower carbon content, it is less likely to experience carbide precipitation or grain boundary embrittlement when exposed to high temperatures. This characteristic helps 316L maintain mechanical integrity and corrosion resistance longer under thermal cycling.
Stress corrosion cracking (SCC) is a phenomenon where tensile stress and a corrosive environment combine to cause unexpected material failure. Both 316 and 316L can be susceptible to SCC in chloride-rich environments, but the risk is somewhat less for 316L due to its lower carbon content and enhanced resistance to sensitization.
The decision between 316 and 316L stainless steel ultimately depends on your application's environment, mechanical requirements, fabrication processes, and cost considerations.
| Application Area | Recommended Grade | Reason |
|---|---|---|
| Welded marine components | 316L | Welding requires low carbon to avoid sensitization |
| Heat exchangers | 316 | Higher strength suffices, lower welding demand |
| Chemical processing equipment | 316L / 316 | Both grades suitable; 316L preferred if welding involved |
| Food and pharmaceutical industries | 316L | Enhanced corrosion resistance and weldability |
| Structural construction | 316 | Higher strength, less critical concerning weld corrosion |
- The food and pharmaceutical industries prefer 316L stainless steel due to its smoother weld zones that limit bacterial growth and its resistance to contaminants.
- The marine industry usually selects 316L for welded parts that will be in prolonged contact with seawater.
- For structural steel and machinery parts requiring higher mechanical strength, 316 stainless steel remains a common option.
While both 316 and 316L stainless steels are widely available and relatively similar in price, 316L typically carries a slightly higher price tag due to its specialized low-carbon control during production.
However, this difference is minor compared to the reduction in fabrication time and costs associated with avoiding post-weld heat treatments in 316L. Furthermore, longer service life and reduced maintenance in severe corrosive environments make 316L a more economical choice over the lifespan of equipment.
Both 316 and 316L stainless steels offer exceptional corrosion resistance because of their chromium, nickel, and molybdenum content, making them highly versatile and reliable in demanding environments. The key difference—carbon content—defines their performance, especially in welding and in preventing intergranular corrosion.
316L stainless steel, with its low carbon content, provides superior resistance to weld decay and intergranular corrosion, making it the better choice for welded applications and exposure to harsh chemical conditions. Meanwhile, 316 stainless steel offers slightly higher mechanical strength and is suitable where welding is limited or controlled post-weld heat treatment is possible.
When choosing between these two grades, considerations should include the environment, fabrication process, mechanical requirements, and long-term maintenance costs. For most welded and corrosive environments, 316L has clear advantages, while 316 remains a robust option where mechanical strength takes precedence.
The main chemical difference is the carbon content; 316L has a maximum carbon content of 0.03%, compared to up to 0.08% in 316. This lower carbon minimizes carbide precipitation and reduces the risk of intergranular corrosion.
316L's low carbon content prevents the formation of chromium carbides during welding, which typically cause sensitization and reduce corrosion resistance along weld seams. Thus, 316L welds retain corrosion resistance without needing post-weld heat treatment.
Generally, both 316 and 316L exhibit similar general corrosion resistance in non-welded areas. The difference is primarily significant in weld zones where carbide precipitation occurs more readily in 316.
316L can be slightly more expensive due to the additional processing to limit carbon content. However, cost benefits arise from the reduced need for post-weld heat treatments and longer service life in corrosive environments.
Yes. Both 316 and 316L are often called marine-grade stainless steels due to their molybdenum content that provides good resistance to chloride-induced pitting and crevice corrosion. However, 316L is generally more reliable for welded marine components.
